SWSF-800 SWD-4000 Collective Bottles Secondary Shrink Packing Machine

SWSF-800 SWD-4000 Collective Bottles Secondary Shrink Packing Machine

SWSF-800 SWD-4000 Collective Bottles Secondary Shrink Packing Machine
SWSF-800 SWD-4000 Collective Bottles Secondary Shrink Packing MachineSWSF-800 SWD-4000 Collective Bottles Secondary Shrink Packing MachineSWSF-800 SWD-4000 Collective Bottles Secondary Shrink Packing MachineSWSF-800 SWD-4000 Collective Bottles Secondary Shrink Packing MachineSWSF-800 SWD-4000 Collective Bottles Secondary Shrink Packing Machine
CategoriesAutomatic Shrink Packing Machine(rotary type)
AlbumView larger image
ModelSWSF-800 SWD-4000
FOB portqingdao
Terms of PaymentT/T
Update Time2019-10-17
Detail Information
Product Details

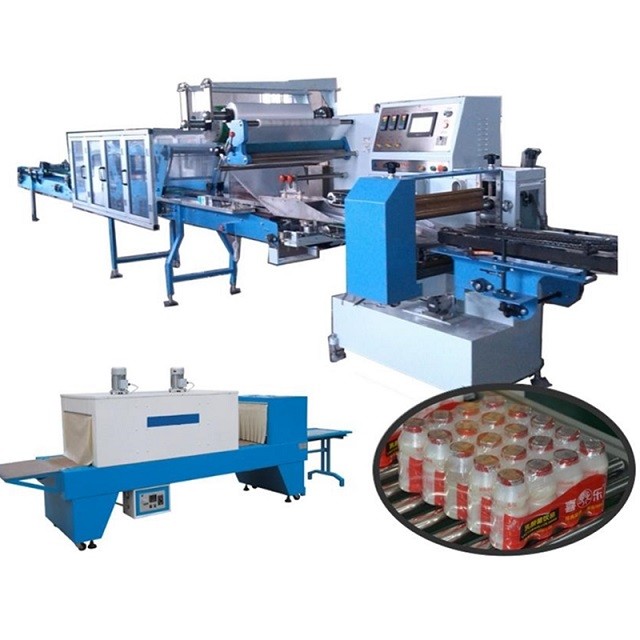

Automatic Shrink Packing machine, Specially designed and manufactured for the middle speed packing requirements of drinks(pure water, beverage,fruit juice and milk product,etc). During the product forward conveying process,it can automatically group into package,so as to save time and enhance packing efficiency. It is the secondary shrink packaging for multi-row small bottles, first the single row bottles are already shrink packed, then use wider film shrink several rows of bottles together in one big pack, and the sealing type is four sides fully sealed but not sleeve type shrink packaging.
Application Of Secondary Shrink Packing Machine
The secondary shrink packaging for multi-row small bottles of fruit juice, milk and other drinks.Wide Film Multi-Row Automatic Shrink Packing machine, Specially designed and manufactured for the middle speed packing requirements of drinks(pure water, beverage,fruit juice and milk product,etc). During the product forward conveying process,it can automatically group into package,so as to save time and enhance packing efficiency. It is the secondary shrink packaging for multi-row small bottles, first the single row bottles are already shrink packed, then use wider film shrink several rows of bottles together in one big pack, and the sealing type is four sides fully sealed but not sleeve type shrink packaging.
Why Do Your Products Needs Be Shrink Packed?
1, Beautiful appearance, Film is very close to the goods, suitable for a variety of different shapes of goods packaging;
2, Good protection, it can have better protection for the inner packed product;
3, Good cleaning, especially suitable for precision instruments, high-precision electronic components packaging;
4. Reduce packaging costs.after replacing the carton with heat shrinkage, the cost can be reduced by at least 30%
5, Anti-theft. A variety of food can be wrapped together with a large shrink film to avoid loss;
6,The stability is good, the goods will not fall in the packaging film;
7, Transparency is good, customers can directly see the product content.Give the product a good opportunity to display itself.

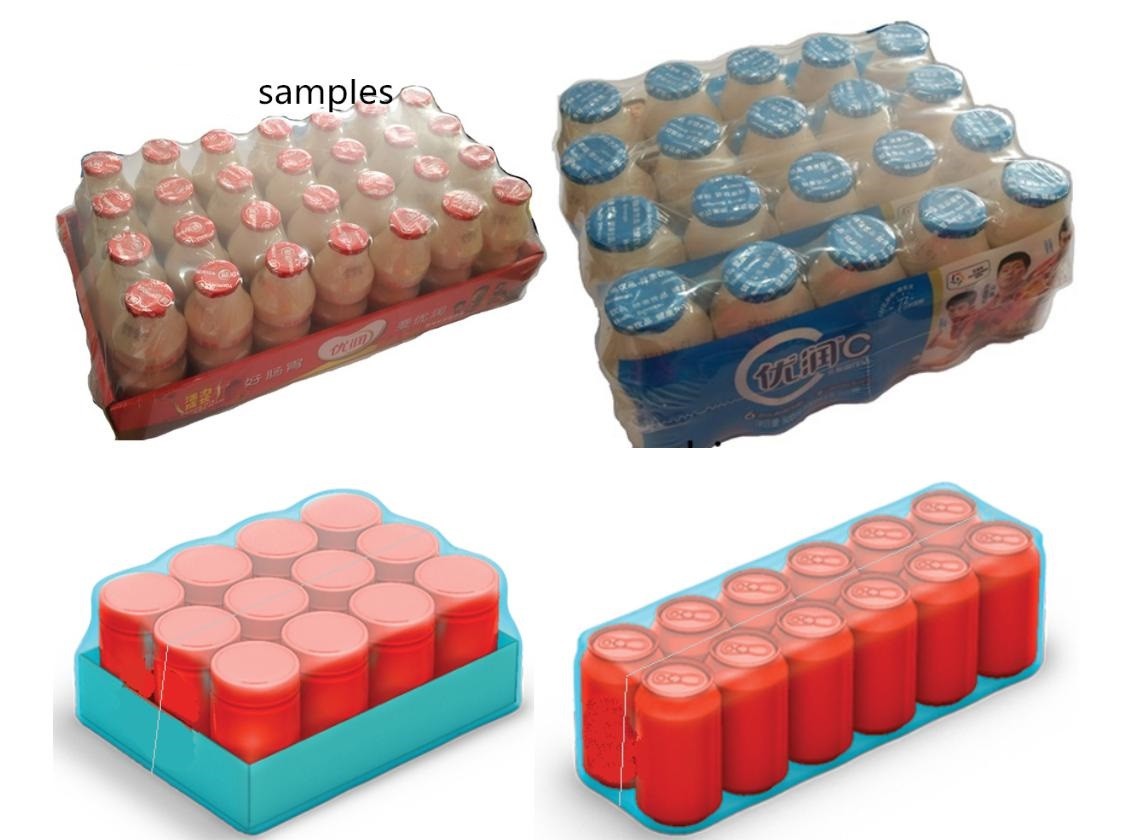

Packing Samples Of Secondary Shrink Packing Machine
Parameter Of Secondary Shrink Packing Machine

Style Number

SWSF-800 SWD-4000

 Speed

10-50packs/min

Product Length

55-400mm

Product Width

10-300mm

Product Height

10-110mm

Max. Film Width

800mm

Total Power

6KW

Machine Weight

1200kg

Machine Sizes

(L) 13000mm × (W) 1400mm × (H) 1680mm

Features Of Secondary Shrink Packing Machine


1.Easy operate, high efficiency

2.Automatic Color marks tracking

3.PLC and servo driving controller,

4.simple structure, low failure rate, easy adjustment.

5.Digital display with package length, speed and temperature adjustable     separately, easy and accurate for use.

6.The different conveying types, ensuring no moving or reversal of the packing goods.

7.The design of mechanical structure is simple and reasonable, which makes the operation easy and adjustment convenient.

8.Fully automatic packing machinery and semi-automatic packing machinery are available

Why choose us

1. We are manufacture but not trade company.
2. We have professional staff who can advise you the suitable packing machine for your specific need.
3. Our professional workers will make the perfect packing machine for you.
4. Well trained and experienced staff will answer your inquiry timely.
5. We provide competitive price and fine quality packing machines.

Our Services

We provide after-sale services both on-site service and email/phone services, the email/phone service will be free of charge.
if you meet any problem during using our machine, just send email to us or call us, we will provide any support as we can.

We also provide related spare parts of our packing machine.
We also provide customized products according to customer's request.

Widely used in Milk industries
