What is Automatic Flow Packing Machine?

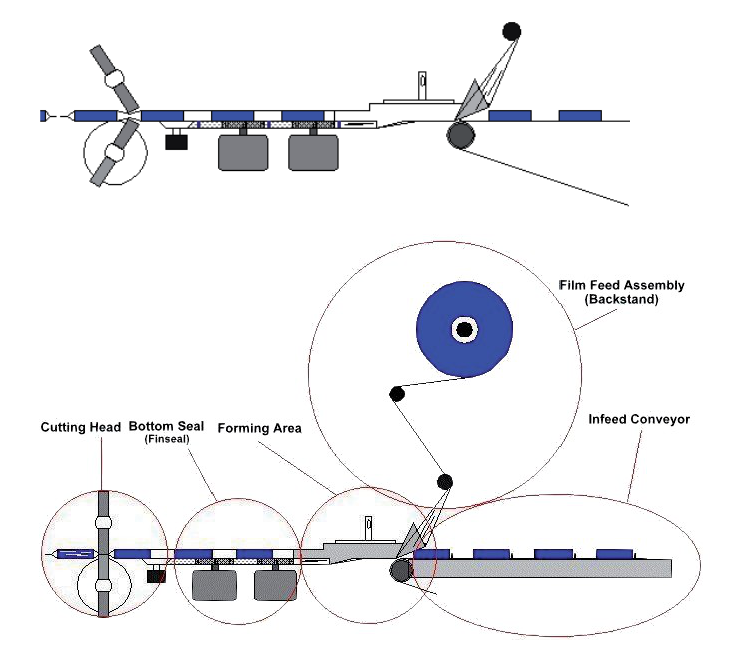

The drawing below shows a horizontal flow packing machine
The flow packing machine packages product by wrapping it in film. The flow packing machine has an infeed conveyor, a film feed assembly, a forming area, a cutting head, and a discharge area. Product is placed on the infeed conveyor. As the infeed conveyor delivers product to the forming area, film is drawn from the film feed assembly into the forming area, where a film tube is formed around the product and a finseal is created. The film tube and the product then are delivered to the cutting head. The cutting head creates the endseals while it cuts apart adjoining wrapped products into individual packages, and delivers the packages to the discharge area. At this time the whole packing process is done.
Constituent Parts of Horizontal Flow Packing Machine
The packing machine packages product by wrapping it in film. The packing machine has an in-feed conveyor, a film feed assembly, a forming area, a cutting head, and a discharge area.
Application of Horizontal Flow Packing Machine:

Single Piece product packaging:

Bread, chocolate en-robed cheese bar, soaps, Popsicle, cookies, waffle, trowel, cotton wool.

Group packaging:

Waffles, meat chops, bakeries, soaps, sponges, biscuits with tray etc.

Non standard products (customization):

Individual spoon, fork, knives, also suit for packing spoon, fork, knife, napkin, toothpick, etc.

Packing Samples of Horizontal Flow Packing Machine:
Parameters of Horizontal Flow Packing Machine

Max film width

720mm

Packing Sizes

L:50~600mm, W:20~200mm H:5~110mm

Packing Speed

30~110bags/min

Packing material

Poly film, Aluminum foil poly film

Power Consumption

4.7KW Single Phase 220V

Machine sizes

LxWxH:5700×1050mm×1700mm

Machine weight

about 1000kg

Auxiliary equipment

1.Date code printer

2.Automatic feeder

3.Euro slod or can be made
