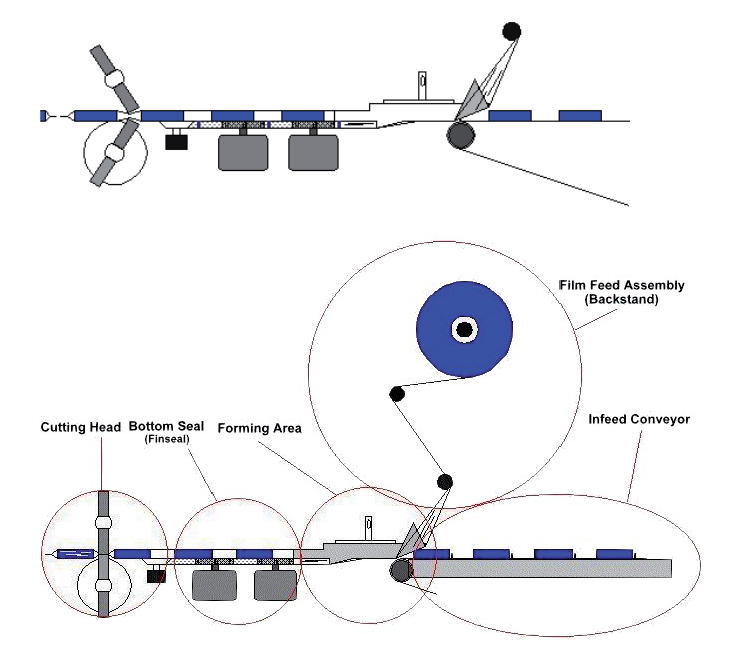

- SWF-590 Automatic Flow Wrapping Packaging MachineDetail InformationProduct DetailsWhat Is Horizontal Flow Packaging Machine?The drawing below shows a horizontal flow packaging machineThe flow wrapping packaging machine packages product by wrapping it in film. The flow wrapping packaging machine has an infeed conveyor, a film feed assembly, a forming area, a cutting head, and a discharge area. Product is placed on the infeed conveyor. As the infeed conveyor delivers product to the forming area, film is drawn from the film feed assembly into the forming area, where a film tube is formed around the product and a finseal is created. The film tube and the product then are delivered to the cutting head. The cutting head creates the endseals while it cuts apart adjoining wrapped products into individual packages, and delivers the packages to the discharge area. At this time the whole packing process is done.Application of Horizontal Flow Wrapping Packaging Machine：
Single Piece product packaging:
Bread, chocolate en-robed cheese bar, soaps, Popsicle, cookies, waffle, trowel, cotton wool.
Waffles, meat chops, bakeries, soaps, sponges, biscuits with tray etc.
Non standard products (customization):
Individual spoon, fork, knives, also suit for packing spoon, fork, knife, napkin, toothpick, etc.Constituent Parts of Horizontal Flow Wrapping Packaging MachineThe packing machine packages product by wrapping it in film. The packing machine has an in-feed conveyor, a film feed assembly, a forming area, a cutting head, and a discharge area.Packing Samples of Horizontal Flow Wrapper:Parameters of Horizontal Flow Wrapping Packaging Machine
Max film width
L:50~600mm， W:20~200mm H:5~110mm
Poly film, Aluminum foil poly film
4.7KW Single Phase 220V
1.Date code printer
3.Euro slod or can be madeFeatures Of Flow Wrapping Packaging Machine:
1.Adopting the PLC control for a more stable and reliable system with less trouble.
2.Digital display with packing length, speed and temperature adjustable separately, easy and accurate for use.
3.Two-way tracking for accurate sealing and cutting Position
4.The main technical parameter for film feeding from below flow automatic packing machineWhy choose us
1. We are manufacture but not trade company
2. We have professional staff who can advise you the suitable choice for your specific need
3. Our professional workers will make the perfect product for you
4. Well trained and experienced staff will answer your inquiry timely
5. We provide competitive price and fine quality productsNAVIGATION
