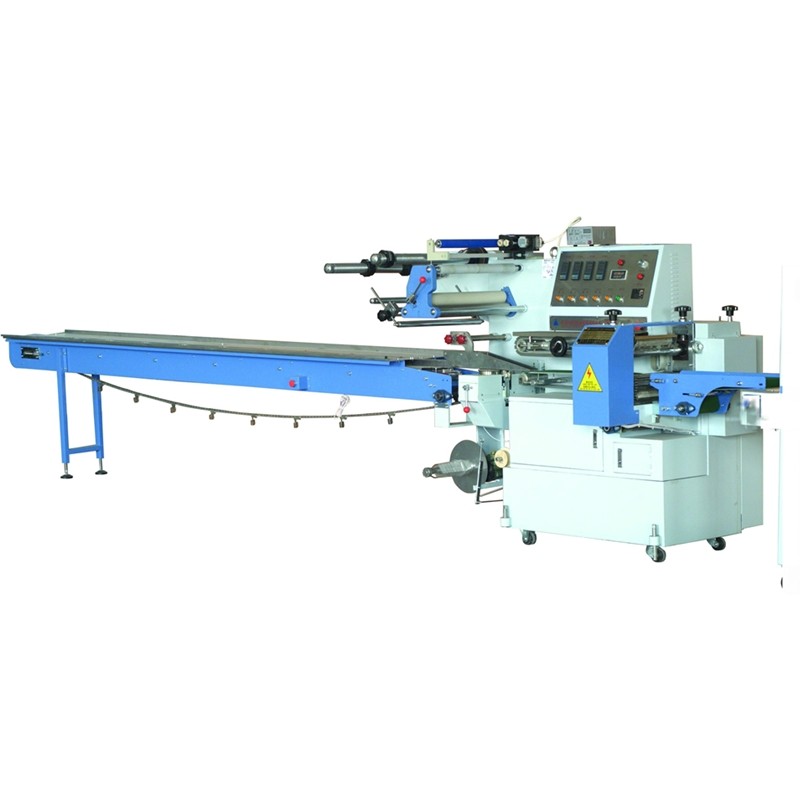

SWA-450 Automatic Flow Wrapping Packaging Machine

SWA-450  Automatic Flow Wrapping Packaging Machine
SWA-450  Automatic Flow Wrapping Packaging MachineSWA-450  Automatic Flow Wrapping Packaging MachineSWA-450  Automatic Flow Wrapping Packaging MachineSWA-450  Automatic Flow Wrapping Packaging MachineSWA-450  Automatic Flow Wrapping Packaging Machine
CategoriesHorizontal Flow Packing Machine(normal type)
AlbumView larger image
ModelSWA-450
sliverblue
FOB portQingdao Port
Update Time2019-08-24
Detail Information
Product Details
What Is Horizontal Flow Wrapping Packaging Machine?

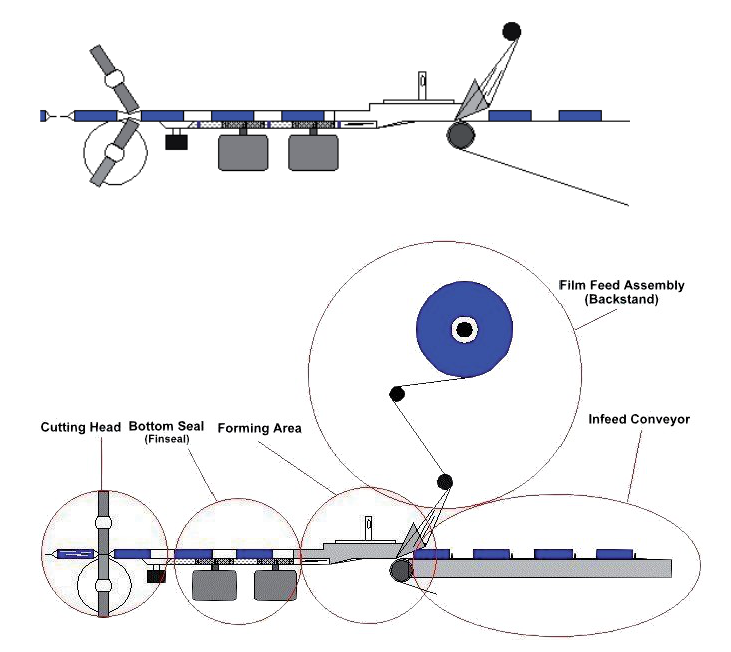

The drawing below shows a horizontal flow wrapping machine

The flow wrapping packing machine packages product by wrapping it in film.The packing machine has an infeed conveyor, a film feed assembly, a forming area, a cutting head, and a discharge area. Product is placed on the infeed conveyor. As the infeed conveyor delivers product to the forming area, film is drawn from the film feed assembly into the forming area, where a film tube is formed around the product and a finseal is created. The film tube and the product then are delivered to the cutting head. The cutting head creates the endseals while it cuts apart adjoining wrapped products into individual packages, and delivers the packages to the discharge area. At this time the whole packing process is done.

Constituent Parts of Horizontal Flow Wrapping Packaging Machine
The packing machine packages product by wrapping it in film. The packing machine has an in-feed conveyor, a film feed assembly, a forming area, a cutting head, and a discharge area.
Application of Horizontal Flow Wrapping Packaging Machine:
 Washing foam, Popsicle, instant noodles, ice cream bar, moon cakes, biscuits, bread, meat food, frozen food, toilet soap, medicine tablets, plastic transfusion, incense coil, industrial products, plastic forks and knives etc.

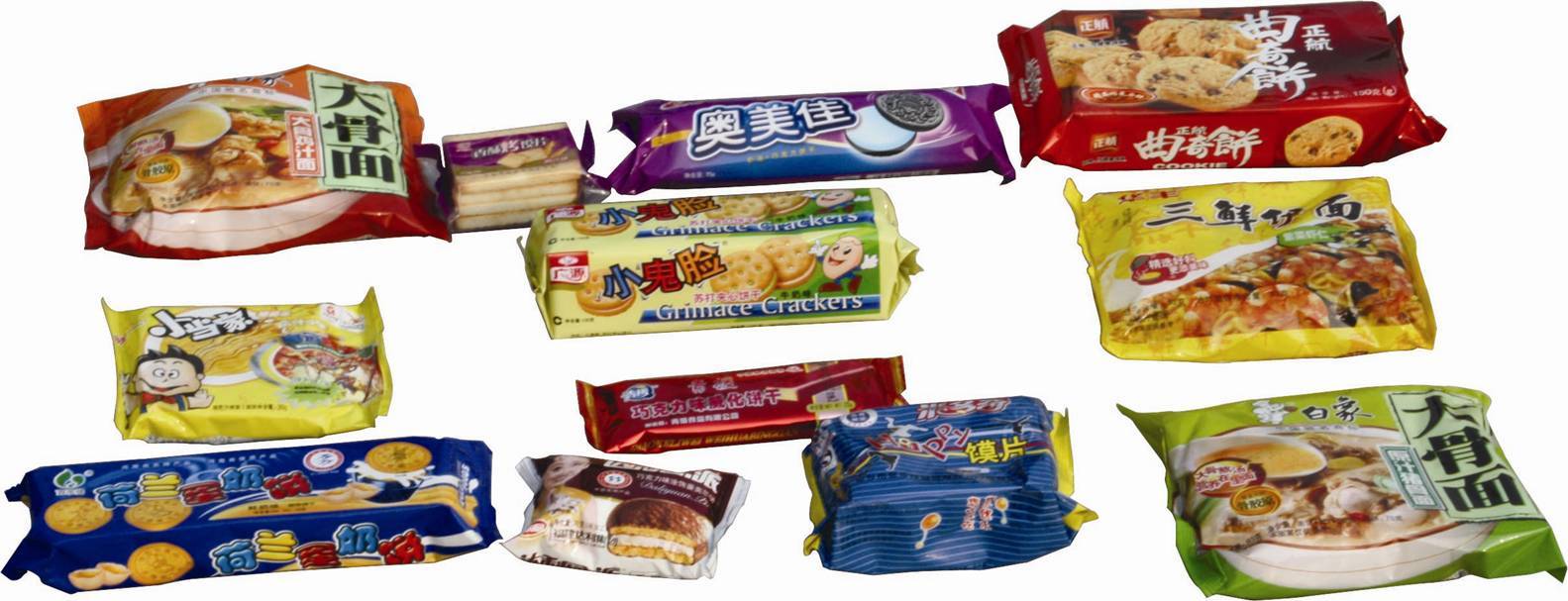

Packing Samples of Horizontal Flow Wrapper:
Parameters of Horizontal Flow Wrapping Packaging Machine

Max   width   of   film

450mm

Packaging   range

L53~300W20~100   H5~70mm

Packing   speed

30-2200Bag/min

Category   of   film

Heat-melt-cut sealing film like PAPER/PE, OPP/PE, OPP/AL/PE, CPP/PE

Power   of   main   motor

1.5KW

Power   of   electrical

2.5KW

Total   power

4.6KW   single   phase   220V

Overall dimension L×W×H

5700×1050mm×1700mm

Weight

About   1000kg

Features Of Flow Wrapping Packaging Machine


1.The main circuit is multi-points PLC control, accurate, reliable and with stable performance.

2.Adopting the frequency converter to step-less speed regulation.

3.Accurate temperature control, direct display and convenient setting.  Accurate pack length and reliable packing speed.

4.Forward and reverse intelligent tracing is used to increase the tracing precision and reduce tracing time, in order to reduce the amount of waste products.

5.The machine will be stopped at a predetermined position when stopped, so to prevent film from burning-up.

Auxiliary equipment

1.Date code printer

2.Automatic feeder
